EGR Valve

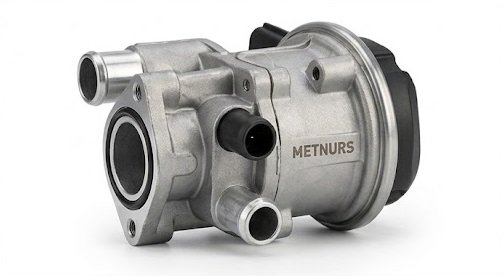

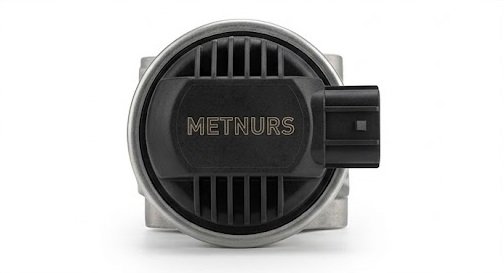

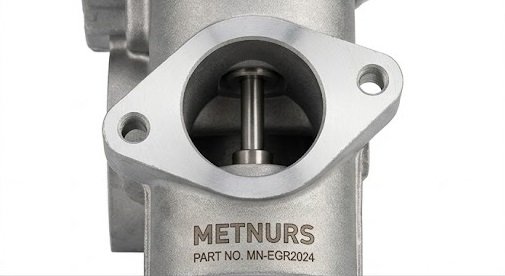

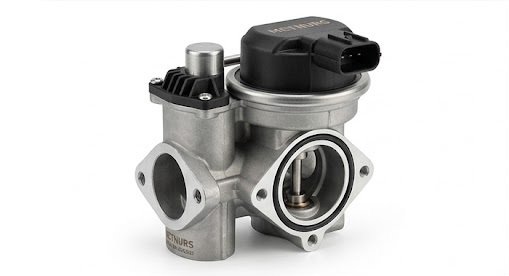

MetNurs EGR-Control 2.0

The MetNurs EGR-Control 2.0 valve is a component for emission control in engines, useful for reducing nitrogen oxide and improving engine efficiency.

Tap the photo to view it in full screen

Italiano Manuale d'uso edizione dimostrativa PDF · 155,1 KB · 2 pages · Italiano

Wiring diagrams, CAD drawings, exploded parts, and technical data sheets.

Guarnizioni JPG · 43,2 KB · 1 page verifica guarnizioni metalliche
Regolatore elettronico JPG · 31,8 KB · 1 page smontaggio e taratura motorino regolatore apertura valvola
Sensore NOX JPG · 50,5 KB · 1 page Pulizia e smontaggio del sensore nox
Calibrazione chiusura JPG · 36,8 KB · 1 page come calibrare la chiusura del corpo frafallato
Italiano Manuale tecnico Valvola EGR edizione dimostrativa PDF · 159,5 KB · 4 pages · Italiano
Italiano Schema elettrico edizione dimostrativa PDF · 133,4 KB · 1 page · Italiano

Electrical

Operating voltage
12 V DC
Control
PWM from engine control unit
Position sensor
Dual redundant potentiometer
Connector
5 pin, coded
Operating temperature
from -40 to +140 C

General

Weight
0.9 kg

The spare parts for this QR. The code is the one to dictate when you order.

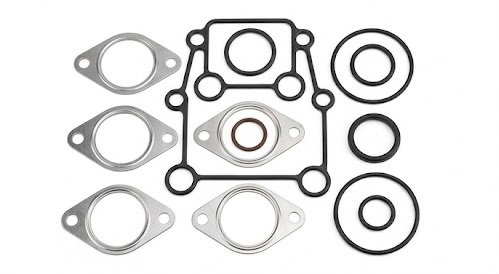

0456-87 Gasket kit

Authorized service centers: here you order spare parts and book a repair.

ScanEron Assistenza Via Ghianda, 27 · 36060 Romano D'Ezzelino
Spare parts Repairs Warranty

Lun-Ven 8:00 12:00

+39 0424123456 Write Site Map
How do you start the EGR valve?
Connect the connector and clear the errors with the diagnosis after installing the valve.
How do you clean the EGR valve?
Every 40,000 km, clean the EGR duct and the manifold.
What does error code P0401 mean?
Insufficient EGR flow, caused by ducts clogged with carbon deposits. Clean the duct and manifold, check the valve travel.
What to do if the EGR light is on?
Check the error codes and follow the diagnostic procedures indicated in the manual.
How often should the EGR valve be maintained?
Diagnostic check of position values every 20,000 km and cleaning of the EGR duct every 40,000 km.
What to do if the EGR valve is not working?
Read the error code, check power supply, connectors, and wiring, and test the suspected component.
How do you replace the EGR valve gaskets?
Replace the gaskets at each intervention and always use new supplied gaskets.
What to do if the EGR valve is stuck?
Disassemble and check the freedom of movement of the shutter.
